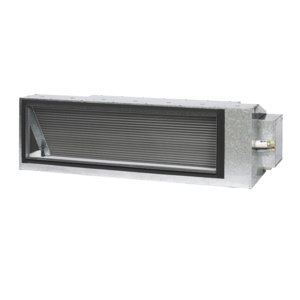

Daikin 16Kw Premium Ducted Inverter Reverse Cycle Air Conditioner
Daikin Indoor FDYQ160LBV1 Outdoor RZQS160AV1
Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter series is the ultimate ducted solution.
16Kw Premium Ducted Inverter Reverse Cycle Air Conditioner
Daikin Premium Inverter provides superior comfort in next to no time.
Australian Made
Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.
Night Quiet Mode
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
Wide Capacity Limit
Allows continuous operations even on the hottest days of summer, or the coldest days of winter (max ambient temperature in Cooling 46°CDB and Heating -15°CWB).
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.
Inverter Technology
An inverter system works like the accelerator of a car, gently increasing or decreasing power. They reach the desired temperature quicker and steadily maintain it without fluctuations.
Industry Leading Energy Performance
Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.
Best For:
- Heating or cooling your entire home
- Small to large houses
- Retrofitting an old R22 ducted system
Australian Made
Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.
Night Quiet Mode
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
Wide Capacity Limit
Allows continuous operations even on the hottest days of summer, or the coldest days of winter (max ambient temperature in Cooling 46°CDB and Heating -15°CWB).
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.
Inverter Technology
An inverter system works like the accelerator of a car, gently increasing or decreasing power. They reach the desired temperature quicker and steadily maintain it without fluctuations.
Industry Leading Energy Performance
Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.
Best For:
- Heating or cooling your entire home
- Small to large houses
- Retrofitting an old R22 ducted system
Specification
- Power Supply
- 1 Phase, 220-240V, 50Hz
- Refrigerant Type
- R410a
- Weight - Outdoor (kg)
- 108
- Outdoor Dimensions - H X W X D (mm)
- 1430 x 940 x 320
- Weight - Indoor (kg)
- 62
- Indoor Dimensions - H X W X D (mm)
- 430 x 1400 x 943
- Air Flow Rate - L/s
- 1120
- Heating Capacity Range - Min ~ Max (kW)
- 7.3 ~ 18.2
- Cooling Capacity Range - Min ~ Max (kW)
- 7.3 ~ 16.3
- Outdoor Unit
- RZQS160AV1
- Indoor Unit
- FDYQ160LBV1
