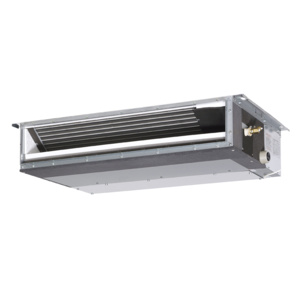

The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home and leaving maximum floor and wall space for furniture, decoration and fittings.

The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.

Standby Power Function
Automatically reduces energy consumption when the system is not in use.

Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night's sleep.

Quiet Operation
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).

Ultra Compact
Compact form factor - measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.

Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.

Auto Fan Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.

Best For:
- Heating or cooling one area of your home
- Drop ceilings & shallow ceilings
- Bedroom air conditioning

Specification

Power Supply

1 Phase 220-240V, 50Hz

Indoor Fan Speeds

5 Steps, Quiet and Automatic

Refrigerant Type

R410a

Weight - Outdoor (kg)

34

Outdoor Dimensions - H X W X D (mm)

550 x 765 x 285

Weight - Indoor (kg)

25

Indoor Dimensions - H X W X D (mm)

200 x 900 x 620

Air Flow Rate - L/s

158

Heating Capacity Range - Min ~ Max (kW)

1.3 ~ 4.5

Cooling Capacity Range - Min ~ Max (kW)

1.3 ~ 3.0

Outdoor Unit

RXS25LBVMA

Indoor Unit

FDXS25LVMA
