Daikin 5.8kW Slim Line Ducted Inverter Reverse Cycle Air Conditioner
Daikin Indoor FBQ60EVE Outdoor RZQS60AV1
Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.
5.8kW Slim Line Ducted Inverter Reverse Cycle Air Conditioner
Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.
Built-in condensate pump
DC Condensate pump is equipped as standard with a 850mm lift.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
Automatic Airflow Adjustment
Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.
Design Flexibility
DC fan with an static pressure of 150Pa and up to 75m (100 Class) of available pipe run to suit your design layout.

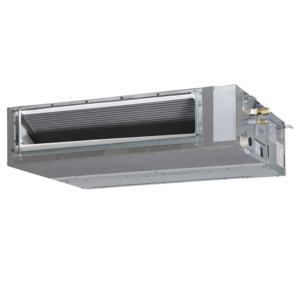

Slim-Line Indoor
Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.
Best For:
- Heating or cooling multiple rooms
- Narrow ceiling spaces
- Bedroom air conditioning
Built-in condensate pump
DC Condensate pump is equipped as standard with a 850mm lift.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
Automatic Airflow Adjustment
Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.
Design Flexibility
DC fan with an static pressure of 150Pa and up to 75m (100 Class) of available pipe run to suit your design layout.
Slim-Line Indoor
Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.
Best For:
- Heating or cooling multiple rooms
- Narrow ceiling spaces
- Bedroom air conditioning
Specification
- Power Supply
- 1 Phase, 220-240V, 50Hz
- Refrigerant Type
- R410a
- Weight - Outdoor (kg)
- 64
- Outdoor Dimensions - H X W X D (mm)
- 770 x 900 x 320
- Weight - Indoor (kg)
- 37
- Indoor Dimensions - H X W X D (mm)
- 245 x 1000 x 800
- Air Flow Rate - L/s
- 300
- Heating Capacity Range - Min ~ Max (kW)
- 3.5 ~ 8.0
- Cooling Capacity Range - Min ~ Max (kW)
- 3.2 ~ 6.0
- Outdoor Unit
- RZQS60AV1
- Indoor Unit
- FBQ60EVE
