Daikin 6.0kW Buklhead Ducted Inverter Reverse Cycle Air Conditioner
Daikin Indoor FDXS60LVMA Outdoor RXS60LBVMA
The Bulkhead range is the ideal choice for air conditioning areas where a discreet installation is preferred.
6.0kW Buklhead Ducted Inverter Reverse Cycle Air Conditioner

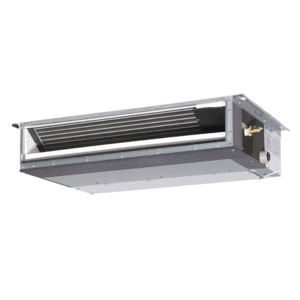

The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home and leaving maximum floor and wall space for furniture, decoration and fittings.
The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.
Standby Power Function
Automatically reduces energy consumption when the system is not in use.
Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night's sleep.
Quiet Operation
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).
Ultra Compact
Compact form factor - measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
Auto Fan Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.
Best For:
- Heating or cooling one area of your home
- Drop ceilings & shallow ceilings
- Bedroom air conditioning
The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.
Standby Power Function
Automatically reduces energy consumption when the system is not in use.
Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night's sleep.
Quiet Operation
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).
Ultra Compact
Compact form factor - measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
Auto Fan Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.
Best For:
- Heating or cooling one area of your home
- Drop ceilings & shallow ceilings
- Bedroom air conditioning
Specification
- Power Supply
- 1 Phase 220-240V, 50Hz
- Indoor Fan Speeds
- 5 Steps, Quiet and Automatic
- Refrigerant Type
- R410a
- Weight - Outdoor (kg)
- 80
- Outdoor Dimensions - H X W X D (mm)
- 990 x 940 x 320
- Weight - Indoor (kg)
- 30
- Indoor Dimensions - H X W X D (mm)
- 200 x 1100 x 620
- Air Flow Rate - L/s
- 266
- Heating Capacity Range - Min ~ Max (kW)
- 3.0 ~ 8.0
- Cooling Capacity Range - Min ~ Max (kW)
- 3.0 ~ 6.5
- Outdoor Unit
- RXS60LBVMA
- Indoor Unit
- FDXS60LVMA
