One outdoor unit can be connected to a wide variety of indoor units, including wall mounted, consoles, cassette and ducted units. Each room can be individually controlled, allowing you to set different temperatures in each room, helping save running costs by heating or cooling rooms as required. The benefit of a multi head systems also helps increase valuable space where having separate splits will take up more room.

The range includes 6 different indoor unit types and 14 different models ranging in capacity from 2.3kW to 6.8kW. With such a wide range of options to choose from, there's a combination to suit almost any need from a small apartment to a large family home.

Up/Down Swing Louvre
The up/down louvre automatically swings up and down.

Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.

Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.

Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.

Economy mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.

ON-OFF Timer
ON-OFF timer can be set to operate once every 24 hours.

Automatic Louvre
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.

Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Washable Panel
Unit has a washable panel

Filter sign
Indicates the filter cleaning period by lamp.

ALL DC
With All DC, electricity loss is decreased and power consumption reduced.

Specification

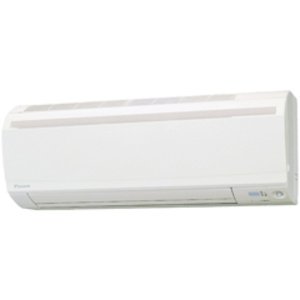

Model No. - Indoor

ASTG07LVCA

Model No. - Outdoor

AOTG24LAT3

Reverse Cycle System

Yes

Cooling Capacity (Watts)

2,300

Cooling Capacity (BTU/h)

7,854

Range (Watts)

2,700

Range (BTU/h)

9,220

Heating Capacity (Watts)

2,700

Heating Capacity (BTU/h)

9,220

Range (Watts)

3,300

Range (BTU/h)

11,270

Power Supply (Volts)

240

Phase-Frequency (Ph - Hz)

1-50

Power Supply Attachment

Outdoor

Running Current, Cooling (Amps)

0.14

Input (Watts)

16

Fan Speed

4

Air Circulation, High (l/s)

178

Compressor Type

DC Twin Rotary

Dimensions - Inside Unit (HxWxD Mm)

293x790x225

Weight - Inside Unit (kg)

9.5

Dimensions - Outside Unit (HxWxD Mm)

700x900x330

Weight - Outside Unit (kg)

55

I.U. Sound Pressure Level (dBA@1mtr)

36

O.U. Sound Pressure Level (dBA@1mtr)

48

O.U. Sound Power Level (dBA)

64

Refrigerant Type

R410A

Connection Pipe Sizes, Gas (mm)

9.52

Connection Pipe Sizes, Liquid (mm)

6.35

Minimum Pipe Length (Metre)

5

Maximum Pipe Length (Metre)

25

Maximum Pipe Height (Metre)

10

Pipe Connection Methods

Flare

Outdoor Operating Temp, Cooling Degrees C

-10 to 46

Outdoor Operating Temp, Heating Degrees C

-15 to 24
