Fujitsu 6.8kW Multi Head Air Conditioner Outdoor Unit Reverse Cycle Inverter (2/3 Room)

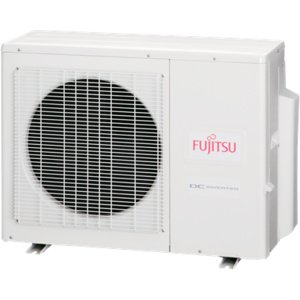

Outdoor Unit AOTG24LAT3 6.8kW Cooling 8.0kW Heating
One outdoor unit can be connected to a wide variety of indoor units, including wall mounted, consoles, cassette and ducted units.
6.8kW Multi Head Air Conditioner Outdoor Unit Reverse Cycle Inverter (2/3 Room)
Each room can be individually controlled, allowing you to set different temperatures in each room, helping save running costs by heating or cooling rooms as required
Energy setting operations allow you to save energy, helping reduce power costs
Can be used in residential and commercial operations.
Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
ALL DC
With All DC, electricity loss is decreased and power consumption reduced.
Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
Energy setting operations allow you to save energy, helping reduce power costs
Can be used in residential and commercial operations.
Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
ALL DC
With All DC, electricity loss is decreased and power consumption reduced.
Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
Specification
- Model No. - Indoor
- AOTG24LAT3
- Model No. - Outdoor
- AOTG24LAT3
- Reverse Cycle System
- Yes
- Cooling Capacity (Watts)
- 6,800
- Cooling Capacity (BTU/h)
- 23,200
- Range (Watts)
- 1,800-8,500
- Range (BTU/h)
- 6,100-29,000
- Heating Capacity (Watts)
- 8,000
- Heating Capacity (BTU/h)
- 27,300
- Range (Watts)
- 2,000-9,200
- Range (BTU/h)
- 6,800-31,400
- Power Supply (Volts)
- 240
- Phase-Frequency (Ph - Hz)
- 1-50
- Power Supply Attachment
- Outdoor
- Running Current, Cooling (Amps)
- 8.1
- Running Current, Range (Amps)
- Max 10.9
- Input, Cooling (Watts)
- 1,940
- Input, Range (Watts)
- Max 2,600
- Running Current, Heating (Amps)
- 8.4
- Running Current, Range (Amps)
- Max 12.1
- Input, Heating (Watts)
- 2,000
- Input, Range (Watts)
- Max 2,870
- E.E.R. - Cooling
- 3.5
- C.O.P. - Heating
- 4
- Fan Speed
- 2
- Air Circulation, High (l/s)
- 917
- Compressor Type
- DC Twin Rotary
- Dimensions - Outside Unit (HxWxD Mm)
- 700×900×330
- Weight - Outside Unit (kg)
- 55
- O.U. Sound Pressure Level (dBA@1mtr)
- 48
- O.U. Sound Power Level (dBA)
- 64
- Refrigerant Type
- R410A
- Connection Pipe Sizes, Gas (mm)
- 2 x 9.52, 1 x 12.7
- Connection Pipe Sizes, Liquid (mm)
- 3 x 65
- Pre Charged Length (Metre)
- 30
- Minimum Pipe Length (Metre)
- 15
- Maximum Pipe Length (Metre)
- 25
- Maximum Pipe Height (Metre)
- 15
- Pipe Connection Methods
- Flare
- Outdoor Operating Temp, Cooling Degrees C
- -10 to 46
- Outdoor Operating Temp, Heating Degrees C
- -15 to 24
