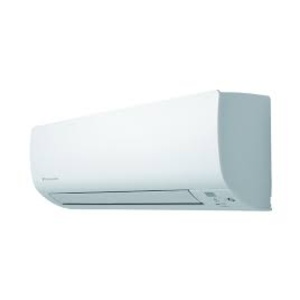

Daikin 10kW SkyAir Reverse Cycle Inverter Air Conditioner
Indoor Unt FAQ100CVEA Outdoor Unit RZQS100AV1
The Daikin SkyAir Wall Mounted series offer compact design and easy installation
10kW SkyAir Reverse Cycle Inverter Air Conditioner
Designed for use in shops, restaurants and small offices, Daikin Sky Air provides a comfortable environment for building occupants all year round and offers building owners substantial operating efficiencies to help minimise operating costs. Our new Sky Air series has been engineered as an R22 retrofit solution. With a sizeable number of existing R22 systems in the field reaching the end of the useful operating life, the timely release of our Sky Air series provides a simplified replacement solution which is also cost effective.
Compact & Sophisticated design
- Flaps neatly close when not in use
Comfortable
- Auto swing (up and down) and wide-angle louvers (left and right by hand) facilitate even room temperature
- Wide-angle louvers (by hand). Soft material louver bends airflow over a wider area
- An air discharge modes ensure comfortable air distribution across the entire room
- Comfort even on the far side of the room. To carry air to the far side of long rooms, extra-high airflow adds 10% more fan speed the "high" setting. Air discharge setting is selected from the remote controller by field setting.
- Two selectable temperature-sensors
- Switchable fan speed: High/Middle/Low
- Auto airflow rate
- Programme "Dry". Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.
Easy installing and servicing
- 6-direction piping offers greater installation flexibility.
- Maintenance possible from the front of the unit. All maintenance tasks can be carried out via front access. During service work, attachment and detachment of parts is easier.
- Drain pump kit is available as option. Drain pump kit can be installed on either left and right side of the air conditioner.
- Connection to a centralised control system is available, no need for option card.
Easy cleaning
- Removable and washable grille
- Flat panel, easy to wipe dust off
- Non-flocking flaps. Condensation does not easily form on and dirt does not cling to non-flocking flaps.
It is easy to clean.
Compact & Sophisticated design
- Flaps neatly close when not in use
Comfortable
- Auto swing (up and down) and wide-angle louvers (left and right by hand) facilitate even room temperature
- Wide-angle louvers (by hand). Soft material louver bends airflow over a wider area
- An air discharge modes ensure comfortable air distribution across the entire room
- Comfort even on the far side of the room. To carry air to the far side of long rooms, extra-high airflow adds 10% more fan speed the "high" setting. Air discharge setting is selected from the remote controller by field setting.
- Two selectable temperature-sensors
- Switchable fan speed: High/Middle/Low
- Auto airflow rate
- Programme "Dry". Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.
Easy installing and servicing
- 6-direction piping offers greater installation flexibility.
- Maintenance possible from the front of the unit. All maintenance tasks can be carried out via front access. During service work, attachment and detachment of parts is easier.
- Drain pump kit is available as option. Drain pump kit can be installed on either left and right side of the air conditioner.
- Connection to a centralised control system is available, no need for option card.
Easy cleaning
- Removable and washable grille
- Flat panel, easy to wipe dust off
- Non-flocking flaps. Condensation does not easily form on and dirt does not cling to non-flocking flaps.
It is easy to clean.
Specification
- Power Supply
- 1 Phase, 220-240 V, 50 Hz
- Refrigerant Type
- R410a
- Weight - Outdoor (kg)
- 108
- Outdoor Dimensions - H X W X D (mm)
- 1430 X 940 X 320
- Weight - Indoor (kg)
- 17
- Indoor Dimensions - H X W X D (mm)
- 340 X 1200 X 240
- Indoor Airflow Rate (H/M/L) - Cooling / Heating (l/s)
- 433 / 383 / 317
- Heating Capacity Range - Min ~ Max (kW)
- 5.1 ~ 12.8
- Cooling Capacity Range - Min ~ Max (kW)
- 5.0 ~ 11.2
- Outdoor Unit
- RZQS100AV1
- Indoor Unit
- FAQ100CVEA
