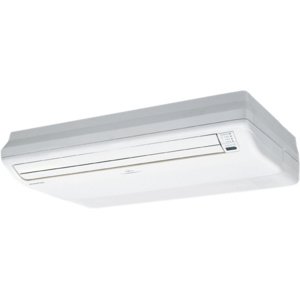

Fujitsu 10Kw Under Ceiling Air Conditioner Reverse Cycle Inverter
ABTA36LAT 10.0kW Cooling 11.2kW Heating
With slim and lightweight design, these models are ideal for ceiling installation if you have limited or no wall space.
10Kw Under Ceiling Air Conditioner Reverse Cycle Inverter
Up/Down Swing Louvre
The up/down louvre automatically swings up and down.
Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.
Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
Filter sign
Indicates the filter cleaning period by lamp.
ALL DC
With All DC, electricity loss is decreased and power consumption reduced.
Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
Double Swing Automatic
Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
Automatic Louvre
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
Economy mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.
ON-OFF Timer
ON-OFF timer can be set to operate once every 24 hours.
Blue Fin Heat Exchanger
Extreme quiet and energy efficient, they are ideal for residential or commercial situations.
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
Fresh air intake
Fresh air can be taken in by a fan which can be connected using UTD-ECS5A* (optional parts). *Selected ducted units only
Right/Left Swing Louvre
The right/left louvre automatically swings in either direction.
The up/down louvre automatically swings up and down.
Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.
Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
Filter sign
Indicates the filter cleaning period by lamp.
ALL DC
With All DC, electricity loss is decreased and power consumption reduced.
Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
Double Swing Automatic
Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
Automatic Louvre
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
Economy mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.
ON-OFF Timer
ON-OFF timer can be set to operate once every 24 hours.
Blue Fin Heat Exchanger
Extreme quiet and energy efficient, they are ideal for residential or commercial situations.
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
Fresh air intake
Fresh air can be taken in by a fan which can be connected using UTD-ECS5A* (optional parts). *Selected ducted units only
Right/Left Swing Louvre
The right/left louvre automatically swings in either direction.
Specification
- Model No. - Indoor
- ABTA36LAT
- Model No. - Outdoor
- AOTA36LCTL
- Reverse Cycle System
- Yes
- Cooling Capacity (Watts)
- 10,000
- Cooling Capacity (BTU/h)
- 34,100
- Range (Watts)
- 3,800-11,200
- Range (BTU/h)
- 13,000-38,200
- Heating Capacity (Watts)
- 11,200
- Heating Capacity (BTU/h)
- 38,200
- Range (Watts)
- 4,000-14,000
- Range (BTU/h)
- 13,700-47,800
- Power Supply (Volts)
- 230
- Phase-Frequency (Ph - Hz)
- 1-50
- Power Supply Attachment
- Outdoor
- Running Current, Cooling (Amps)
- 13.0
- Running Current, Range (Amps)
- Max 19
- Input, Cooling (Watts)
- 3,110
- Input, Range (Watts)
- Max 4,540
- Running Current, Heating (Amps)
- 12.7
- Running Current, Range (Amps)
- Max 19
- Input, Heating (Watts)
- 3,020
- Input, Range (Watts)
- Max 4,540
- Moisture Removal (l/hr)
- 3
- E.E.R. - Cooling
- 3.21
- C.O.P. - Heating
- 3.71
- Star Rating - Cooling
- 1.5
- Star Rating - Heating
- 2.5
- Fan Speed
- 4
- Air Circulation, High (l/s)
- 528
- Compressor Type
- Twin Rotary
- Dimensions - Inside Unit (HxWxD Mm)
- 240x1660x700
- Weight - Inside Unit (kg)
- 46
- Dimensions - Outside Unit (HxWxD Mm)
- 1290x900x330
- Weight - Outside Unit (kg)
- 86
- I.U. Sound Pressure Level (dBA@1mtr)
- 47
- O.U. Sound Pressure Level (dBA@1mtr)
- 54
- O.U. Sound Power Level (dBA)
- 68
- Refrigerant Type
- R410A
- Connection Pipe Sizes, Gas (mm)
- 15.88
- Connection Pipe Sizes, Liquid (mm)
- 9.52
- Pre Charged Length (Metre)
- 20
- Minimum Pipe Length (Metre)
- 5
- Maximum Pipe Length (Metre)
- 50
- Maximum Pipe Height (Metre)
- 30
- Pipe Connection Methods
- Flare
- Outdoor Operating Temp, Cooling Degrees C
- -15 to 46
- Outdoor Operating Temp, Heating Degrees C
- -15 to 24
