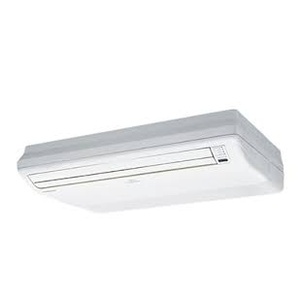

Fujitsu 7.1Kw Floor/Underceiling Standing Reverse Cycle Inverter
Indoor Unit ABTG24LVTC Outdoor Unit AOTG24LATC
Slim and lightweight, these models have been designed for floor or ceiling installation. Ideal for both residential or commercial applications.
7.1Kw Floor/Underceiling Standing Reverse Cycle Inverter
Even Air Distribution
All models have Fan Operation modes which helps circulate air to all corners of your space, providing great comfort throughout the room.
Universal Comfort
With a slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Quiet and energy efficient, they are ideal for residential or commercial situations.
Flexible Installation
These models allow for flexible installation either sitting proud from or semi-concealed from your ceiling or wall, to a style which best suits the needs of your space.
Features:
- Up/Down swing louvre. The up/down louvre automatically swings up and down.
- Auto shut louvre. The auto shut louvres close or open automatically when the unit stops or starts.
- Auto restart. Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
- Program timer. This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
- On-Off timer. ON-OFF timer can be set to operate once every 24 hours.
- Blue fin heat exchanger. Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
- Double swing automatic. Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
- Automatic louvre. The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
- Automatic air flow adjustment. When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
- Sleep timer. The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
- Economy mode. Limits the maximum operation current, and performs operation with the power consumption suppressed.
- All DC. With All DC, electricity loss is decreased and power consumption reduced.
- Auto-changeover. The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
- Right/Left swing louvre. The right/left louvre automatically swings in either direction.
All models have Fan Operation modes which helps circulate air to all corners of your space, providing great comfort throughout the room.
Universal Comfort
With a slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Quiet and energy efficient, they are ideal for residential or commercial situations.
Flexible Installation
These models allow for flexible installation either sitting proud from or semi-concealed from your ceiling or wall, to a style which best suits the needs of your space.
Features:
- Up/Down swing louvre. The up/down louvre automatically swings up and down.
- Auto shut louvre. The auto shut louvres close or open automatically when the unit stops or starts.
- Auto restart. Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
- Program timer. This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
- On-Off timer. ON-OFF timer can be set to operate once every 24 hours.
- Blue fin heat exchanger. Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
- Double swing automatic. Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
- Automatic louvre. The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
- Automatic air flow adjustment. When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
- Sleep timer. The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
- Economy mode. Limits the maximum operation current, and performs operation with the power consumption suppressed.
- All DC. With All DC, electricity loss is decreased and power consumption reduced.
- Auto-changeover. The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
- Right/Left swing louvre. The right/left louvre automatically swings in either direction.
Specification
- Piping Extension Length Min ~ Max (m)
- 3 ~ 30
- Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm)
- 6.5 / 15.88
- Refrigerant Type
- R410a
- Weight - Outdoor (kg)
- 60
- Outdoor Dimensions - H X W X D (mm)
- 830 × 900 × 330
- Weight - Indoor (kg)
- 27
- Indoor Dimensions - H X W X D (mm)
- 199 × 990 × 655
- Outdoor Unit Sound Pressure Level (dBA@1mtr)
- 53
- Indoor Unit Sound Pressure Level (dBA@1mtr)
- 49
- Running Current - Cool / Heat (A)
- 9.0 / 9.3
- Heating Capacity Range - Min ~ Max (kW)
- 2.2 ~ 9.1
- Cooling Capacity Range - Min ~ Max (kW)
- 2.9 ~ 8.0
- Outdoor Unit
- AOTG24LATC
- Indoor Unit
- ABTG24LVTC
