Even Air Distribution
All models have Fan Operation modes which helps circulate air to all corners of your space, providing great comfort throughout the room.

Universal Comfort

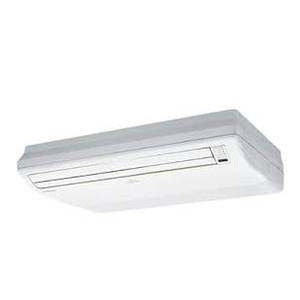

With a slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Quiet and energy efficient, they are ideal for residential or commercial situations.



Flexible Installation
These models allow for flexible installation either sitting proud from or semi-concealed from your ceiling or wall, to a style which best suits the needs of your space.

Up/Down Swing Louvre
The up/down louvre automatically swings up and down.

Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.

Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.

Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.

ON-OFF Timer
ON-OFF timer can be set to operate once every 24 hours.

Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.

Double Swing Automatic
Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.

Automatic Louvre
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.

Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Economy mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.

ALL DC
With All DC, electricity loss is decreased and power consumption reduced.

Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.

Specification

Model No. - Indoor

ABTG24LVTC

Model No. - Outdoor

AOTG24LATC

Reverse Cycle System

Yes

Cooling Capacity (Watts)

7,100

Cooling Capacity (BTU/h)

24,200

Range (Watts)

2,900-8,000

Range (BTU/h)

9,900-27,300

Heating Capacity (Watts)

8,000

Heating Capacity (BTU/h)

27,300

Range (Watts)

2,200-9,100

Range (BTU/h)

7,500-31,000

Power Supply (Volts)

240

Phase-Frequency (Ph - Hz)

1-50

Power Supply Attachment

Outdoor

Running Current, Cooling (Amps)

9.0

Running Current, Range (Amps)

Max 15.7

Input, Cooling (Watts)

2,140

Input, Range (Watts)

Max 2,400

Running Current, Heating (Amps)

9.3

Running Current, Range (Amps)

Max 15.7

Input, Heating (Watts)

2,210

Input, Range (Watts)

Max 2,650

Moisture Removal (l/hr)

2.7

E.E.R. - Cooling

3.32

C.O.P. - Heating

3.61

Fan Speed

4

Air Circulation, High (l/s)

272

Compressor Type

DC Twin Rotary

Dimensions - Inside Unit (HxWxD Mm)

199×990×655

Weight - Inside Unit (kg)

27

Dimensions - Outside Unit (HxWxD Mm)

830×900×330

Weight - Outside Unit (kg)

60

I.U. Sound Pressure Level (dBA@1mtr)

49

O.U. Sound Pressure Level (dBA@1mtr)

53

O.U. Sound Power Level (dBA)

68

Refrigerant Type

R410A

Connection Pipe Sizes, Gas (mm)

15.88

Connection Pipe Sizes, Liquid (mm)

6.5

Pre Charged Length (Metre)

20

Minimum Pipe Length (Metre)

3

Maximum Pipe Length (Metre)

30

Maximum Pipe Height (Metre)

30

Pipe Connection Methods

Flare

Outdoor Operating Temp, Cooling Degrees C

-10 to 46

Outdoor Operating Temp, Heating Degrees C

-15 to 24
