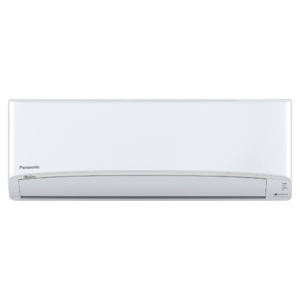

The New Panasonic Wall Split R32 Gas model is the latest energy efficient split system air conditioner. Brand new boxed includes indoor unit, outdoor unit and remote with a Panasonic 5 year warranty.

Specification

FEATURES - RELIABILITY

Blue Fin Condenser Yes Random Auto Restart Yes Long Piping (m) 30 Top-panel Maintenance Access Yes Self Diagnostic Function Yes

FEATURES - CONVENIENCE

24-hour Dual On / Off Real Setting Timer Demand Response Enabling Device (DRED) 3rd Party Connectivity LCD Wireless Remote Controller Large Wired Remote Controller Optional

FEATURES - HEALTHY AIR

Anti Bacterial Air Filter Odour Removing Function Removable, Washable Panel

FEATURES - ENERGY SAVINGS

Economy Mode Inverter Control P-TECh Compressor

FEATURES - COMFORT

Aerowings iAUTO-X Powerful Mode Quiet Mode Soft Dry Operation Mode Fan Mode Remote Airflow Control (All Directions) Auto Changeover Hot Start Control Cooling Operation Higher Limit (oC)46 Heating Operation Lower Limit -15

Warranty - Residential

5 Years Manufacturer's Warranty

Additional Refrigerant (R32) (g/m)

15

Pipe Length For Additional Gas (m)

10

Piping Extension Length Min ~ Max (m)

3 ~ 30

Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm)

6.35 / 12.70

Weight - Outdoor (kg)

35

Weight - Indoor (kg)

13

Outdoor Dimensions - H X W X D (mm)

619 x 824 x 299

Indoor Dimensions - H X W X D (mm)

302 x 1102 x 244

Air Flow - Cool / Heat (L/s)

344 / 344

Dehumidify (L/h)

3.3

Quiet Mode - Indoor (dB)

33

Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A))

49 / 44

Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A))

46 / 36 / 33

Running Current - Cool / Heat (A)

8.00 / 8.20

Star Rating - Cool / Heat

1.5 / 2.0

Heating Capacity Range - Min ~ Max (kW)

0.98 ~ 8.00

Cooling Capacity Range - Min ~ Max (kW)

0.98 ~ 6.60
