Aussie Air Conditioning

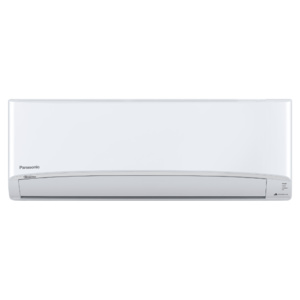

The New Panasonic Wall Split R32 Gas model is the latest energy efficient split system air conditioner. Brand new boxed includes indoor unit, outdoor unit and remote with a Panasonic 5 year warranty.

Specification

FEATURES - RELIABILITY

Blue Fin Condenser Yes Random Auto Restart Yes Long Piping (m) 30 Top-panel Maintenance Access Yes Self Diagnostic Function Yes

FEATURES - CONVENIENCE

24-hour Dual On / Off Real Setting Timer Demand Response Enabling Device (DRED) 3rd Party Connectivity LCD Wireless Remote Controller Large Wired Remote Controller Optional

FEATURES - HEALTHY AIR

Anti Bacterial Air Filter Odour Removing Function Removable, Washable Panel

FEATURES - ENERGY SAVINGS

Economy Mode Inverter Control P-TECh Compressor

FEATURES - COMFORT

Aerowings iAUTO-X Powerful Mode Quiet Mode Soft Dry Operation Mode Fan Mode Remote Airflow Control (All Directions) Auto Changeover Hot Start Control Cooling Operation Higher Limit (oC)46 Heating Operation Lower Limit -15

Warranty - Residential

5 Years Manufacturer's Warranty

Additional Refrigerant (R32) (g/m)

25

Pipe Length For Additional Gas (m)

10

Piping Extension Length Min ~ Max (m)

3 ~ 30

Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm)

6.35 / 15.88

Weight - Outdoor (kg)

60

Weight - Indoor (kg)

13

Outdoor Dimensions - H X W X D (mm)

795 x 875 x 320

Indoor Dimensions - H X W X D (mm)

302 x 1102 x 244

Air Flow - Cool / Heat (L/s)

385 / 400

Dehumidify (L/h)

4.7

Quiet Mode - Indoor (dB)

35

Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A))

55 / 50

Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A))

51 / 38 / 35

Running Current - Cool / Heat (A)

11.50 / 12.30

Star Rating - Cool / Heat

1.5 / 2.0

Heating Capacity Range - Min ~ Max (kW)

2.20 ~ 11.00

Cooling Capacity Range - Min ~ Max (kW)

2.30 ~ 9.00
